Jupyter notebook is a browser-based editor and graphical interface to the IPython shell; it must connect to a running Python process in order to execute code. This process (known as a "kernel") can be started by running the following command in your system shell:

$ jupyter notebook

viene avviata una finestra del browser di default, contenente il notebook.

Plotting from an IPython notebook

Per inizializzare matplotlib in un notebook jupyter

%matplotlib inline
import matplotlib.pyplot as plt

To create an embedded plot in the notebook, 2 options

• %matplotlib notebook   interactive plot
• %matplotlib inline      static plot

Come disegnare

import numpy as np
x = np.linspace(0, 10, 100)
plt.plot(x, np.sin(x), '-')
plt.plot(x, np.cos(x), '--')

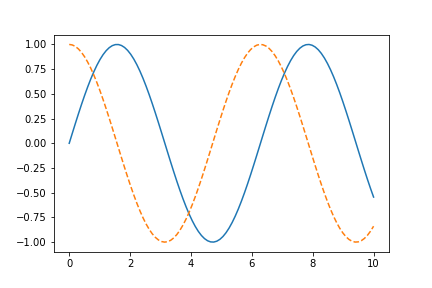

Disegnare e salvare (rispettare ordine cmd)

fig = plt.figure()

plt.plot(x, np.sin(x), '-')
plt.plot(x, np.cos(x), '--')

fig.savefig('my_figure.png')

save in the current working directory

Verificare esistenza file con un cmd al SO

! dir my_figure.png

Richiamare a schermo da file

from IPython.display import Image
Image('my_figure.png')
