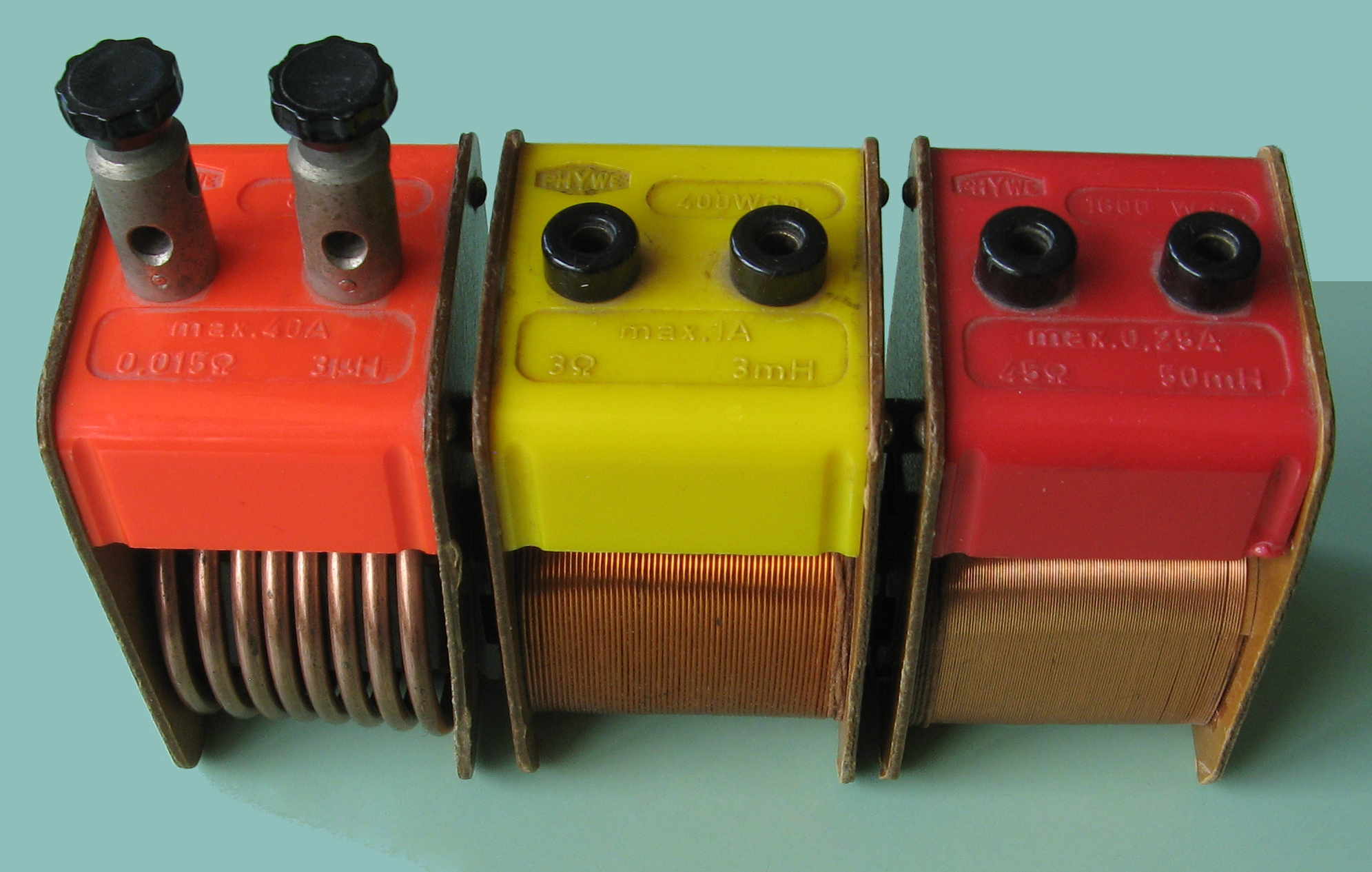

| Wdg | max A | R [Ω] | L [H] | |
|---|---|---|---|---|
| Rossa | 1600 | 0,25 | 45 | 50 mH |
| Gialla | 400 | 1,00 | 3 | 3 mH |
| Arancio | 8 | 40 A | 0,015 | 3 μH |
| Wdg | windings, giri |
|---|---|
| L [H] | induttanza magnetica, misurata in henry |
| H | henry, UM dell'induttanza magnetica L. μH microhenry. μ micro 10-6 |
| max A | massima corrente ammissibile |
| R [Ω] | resistena del filo |
Solenoide ≡ bobina ≡ avvolgimento.
Deviazione ago magnetico tramite corrente solenoide.
